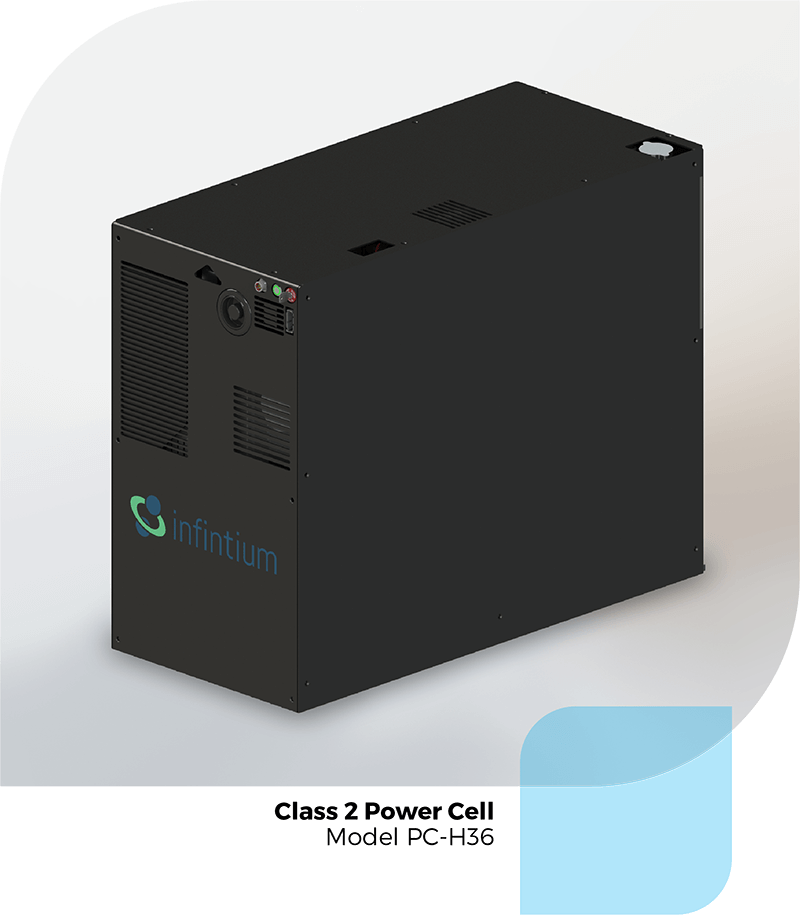

Infintium Class One Power Cells are ready to roll. Certified by Industry-leading lift truck manufacturers and rigorously tested in customer environments, Infintium gives you the confidence to improve lift truck performance.
| Specifications | |
|---|---|
| Continuous Power | 7.0 kW |
| Nominal Voltage (Input / Output) | 48 Vdc |
| Hydrogen Storage Pressure | 350 bar |
| Hydrogen Mass in Cylinder | 1.0 – 1.2 kg |
| Fill Time | < 3 Minutes |
| Weight (Configurable) | 2230 – 3780 lbs |
Infinitum’s Class 2 is designed to meet the demanding power requirements of distribution narrow aisle applications.
| Specifications | |
|---|---|
| Continuous Power | 4.5 kW |
| Nominal Voltage (Input / Output) | 36 VDC |
| Hydrogen Storage Pressure | 350 bar |
| Hydrogen Mass in Cylinder | 0.8 kg |
| Fill Time | < 3 Minutes |
| Weight (Configurable) | 2330 – 2630 lbs |

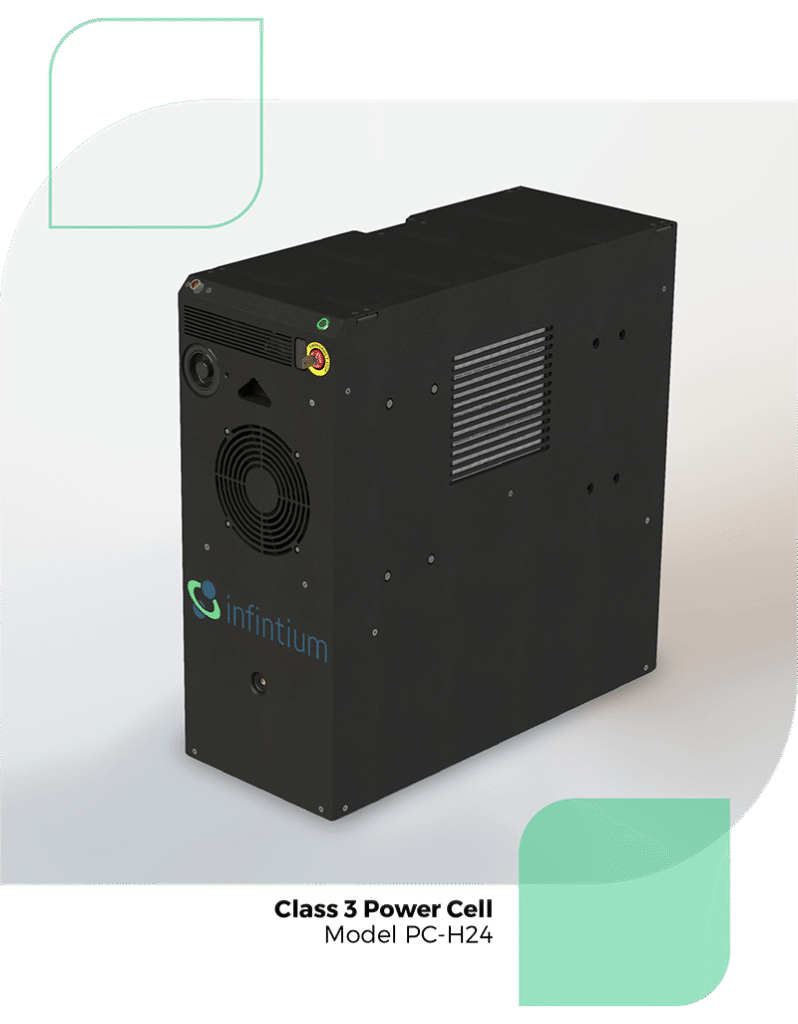

Infintium’s Class 3 Power Cells are flexible to meet low to high duty cycle applications. In today’s Tugger and Walkie-rider environments you can count on Infintium to reliably meet your power requirements.
| Specifications | |
|---|---|
| Continuous Power | 1.2 – 2.0 kW |
| Nominal Voltage (Input / Output) | 24 VDC |
| Hydrogen Storage Pressure | 350 bar |
| Hydrogen Mass in Cylinder | 0.8 kg |
| Fill Time | < 3 Minutes |
| Weight (Configurable) | 560 – 1650 lbs |
Compared to batteries or combustion engines, fuel cells are simply more efficient. They eliminate the need to change, charge or manage batteries. This saves both labor and space you allocate to a battery room. Fuel cells run longer than lead-acid batteries and can be fueled in as little as three minutes.
